Never have we made our customers disappointed about our RVT_ELEC_01101 study guide. So we have enjoyed good reputation in the market for about ten years. In the future, we will stay integrity and research more useful RVT_ELEC_01101 learning materials for our customers. Please continue supporting our RVT_ELEC_01101 Exam Questions and we will make a better job with your warm encourages and suggestions. So if you have any opinions about our RVT_ELEC_01101 learning quiz, just leave them for us.

It is necessary to strictly plan the reasonable allocation of RVT_ELEC_01101 test time in advance. Many students did not pay attention to the strict control of time during normal practice, which led to panic during the process of examination, and even some of them are not able to finish all the questions. If you purchased RVT_ELEC_01101 learning dumps, each of your mock exams is timed automatically by the system. RVT_ELEC_01101 learning dumps provide you with an exam environment that is exactly the same as the actual exam. It forces you to learn how to allocate exam time so that the best level can be achieved in the examination room. At the same time, RVT_ELEC_01101 Test Question will also generate a report based on your practice performance to make you aware of the deficiencies in your learning process and help you develop a follow-up study plan so that you can use the limited energy where you need it most. So with RVT_ELEC_01101 study tool you can easily copyright.

>> Sure RVT_ELEC_01101 Pass <<

RVT_ELEC_01101 Test Testking, RVT_ELEC_01101 New Dumps Questions

RVT_ELEC_01101 training dumps are created in the most unique, customized way so it can cover different areas of exam with the Quality and Price of the product which is unmatched by our Competitors. The 100% guarantee pass pass rate of RVT_ELEC_01101 training materials that guarantee you to pass your Exam and will not permit any type of failure. You will find every question and answer within RVT_ELEC_01101 Training Materials that will ensure you get any high-quality certification you’re aiming for.

Autodesk RVT_ELEC_01101 Exam Syllabus Topics:

TopicDetails
Topic 1
  • Documentation: This section of the exam measures the skills of Revit Technicians and covers manipulating views, templates, and schedules to produce accurate documentation. It includes managing panel schedules, creating various view types such as legends, callouts, and 3D views, and applying phasing and revision management. Candidates are also tested on annotation tools, including tags, keynotes, and note blocks, to ensure clarity and consistency in project documentation.
Topic 2
  • Collaboration: This section of the exam measures the skills of Project Coordinators and covers collaboration workflows in Revit. It includes working with imported and linked files, managing worksharing concepts, and using interference checks. Candidates are also evaluated on data coordination through copy
  • monitor tools, exporting to different formats, managing design options, and transferring project standards to ensure effective teamwork in shared environments.
Topic 3
  • Families: This section of the exam measures the skills of BIM Modelers and focuses on creating and editing Revit families. It includes defining MEP connectors, understanding system and component family types, configuring family categories, and setting up light sources. The section also assesses parameter creation, annotation family setup, and controlling element visibility to ensure effective customization and reuse across electrical projects.
Topic 4
  • Modeling: This section of the exam measures the skills of Electrical Designers and covers creating and managing electrical elements within Revit. It includes adding electrical equipment such as panelboards and transformers, configuring circuits and low-voltage systems, and using the System Browser for navigation. Candidates must also demonstrate the ability to model connecting geometry, including conduits, cable trays, and wiring, with appropriate settings and fittings.
Topic 5
  • Analysis: This section of the exam measures the skills of Electrical Engineers and focuses on performing analytical tasks in Revit. It includes conducting load calculations, conceptual lighting analysis, and configuring electrical settings for load classifications and demand factors. Candidates must show the ability to use Revit’s analysis tools to ensure proper electrical design performance and energy efficiency.

Autodesk Certified Professional in Revit for Electrical Design Sample Questions (Q23-Q28):

NEW QUESTION # 23
Refer to exhibit.

An electrical designer tries to place a generic annotation family in a data device family. The designer receives the error message as shown. What should the designer do?

Answer: A

Explanation:
The warning message - "Can't create this kind of element in this view in the current mode" - appears when an electrical designer attempts to place a Generic Annotation family inside a model family (e.g., a data device or electrical fixture) that is not configured to host annotation elements.
According to the Revit Electrical Design documentation, Generic Annotation families are 2D annotation elements, and therefore, cannot be created or viewed in 3D model views unless configured as "Shared." The official guide clarifies:
"You can create generic annotation families and nest them inside host model families so that the annotations display in the project." However, this only functions correctly if the annotation is enabled to act independently within the host:
"To allow a nested annotation to be visible and editable when placed in a host model family, the nested annotation must be set to Shared before loading it into the host." If the nested annotation is not set to Shared, Revit cannot create or display it in the host's model view, triggering this exact warning.
Thus, the correct workflow is:
Open the Generic Annotation family in the Family Editor.
Go to Family Category and Parameters.
Check the box "Shared" under Family Parameters.
Save and reload the family into the host electrical device family.
Other options-changing view level, detail level, or annotation orientation-do not resolve this placement restriction.


NEW QUESTION # 24
An electrical designer wants to add a parameter to a lighting fixture schedule without editing the families. Which parameter type should the designer use?

Answer: D

Explanation:
In Revit Electrical Design workflows, when a designer wishes to add a parameter to a lighting fixture schedule without editing the families themselves, the proper approach is to use a Project Parameter.
The Revit MEP documentation clearly explains:
"To add a custom field to a schedule, you can create a custom parameter using the Parameter Properties dialog. Under Parameter Type, select Project parameter." This method links the parameter directly to the project and to all instances of the specified category (in this case, Lighting Fixtures), allowing it to appear in the schedule automatically without requiring any modification to the family files (.RFA).
In contrast:
Family Parameters apply only within the family file and are not schedulable across multiple families.
Global Parameters control dimensional or relational constraints, not schedule data.
Reporting Parameters are read-only and extract model information; they cannot be manually added to schedules.
Revit's scheduling workflow defines this process:
"On the Fields tab of the Sheet List Properties dialog, click Add Parameter... Under Parameter Type, select Project parameter." This same mechanism applies to lighting fixture schedules, as schedules and sheet lists share parameter structures in Revit. The new project parameter can then be sorted, filtered, and displayed in the schedule view for documentation or tagging purposes.
References:
Autodesk Revit MEP User's Guide - Chapter 49 "Preparing Construction Documents," pp. 1126-1128 Autodesk Revit Parameters Overview - "Project Parameters" and "Shared Parameters," pp. 1541-1543 Autodesk Revit Electrical Design Essentials - Schedule and Parameter Management Section


NEW QUESTION # 25
A project has 24 branch panel schedules that all need the same formatting changes. What should the electrical designer do?

Answer: D

Explanation:
To ensure consistency and efficiency when multiple branch panel schedules require identical formatting, Revit allows applying a panel schedule template to one or more schedules simultaneously.
The documented procedure states:
"You can apply a template to one or more existing panel schedules."
And further:
"Select the panel schedule(s).
For Apply Templates, specify the template to apply to the selected panel." This functionality lets an electrical designer select all 24 branch panel schedules in the Project Browser, right-click and apply the desired template to update formatting across all selected schedules in a single operation.


NEW QUESTION # 26
Refer to exhibit.

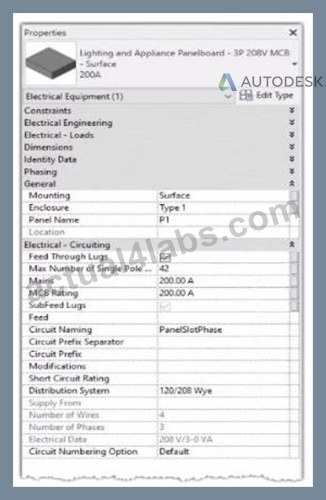

A panelboard has the following properties:

The Circuit Naming Scheme PanelSlolPhase. which defines the value of the Circuit Number parameter, is configured as follows:

In electrical settings. Phase Labels have not been modified from the default "A." "B." and "C- The Circuit Number lot a single-pole circuit in the panelboard's first breaker position is----------(Enter the correct value into the field)

Answer:

Explanation:
See the explanation
Explanation:
The answer is P1/1/A
In Autodesk Revit Electrical Design, the Circuit Number for a branch circuit in a panelboard is automatically generated based on the Circuit Naming Scheme specified in the project's Electrical Settings. This naming scheme defines how each circuit is labeled by combining predefined fields such as Panel Name, Slot Index, and Phase Label.

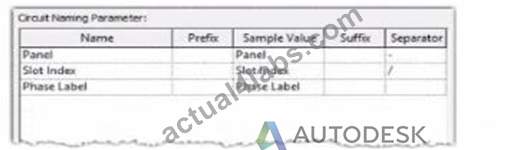

From the exhibit, the Circuit Naming Parameter setup is configured as:
Name
Prefix
Sample Value
Suffix
Separator
Panel
Panel
Panel
-
"-"
Slot Index
Slot Index
Slot Index
-
"/"
Phase Label
Phase Label
Phase Label
-
-
The panelboard properties show that its Circuit Naming method is set to PanelSlotPhase, which means that Revit will generate circuit numbers using the following structure:
[Panel Name] - [Slot Index] / [Phase Label]
From the exhibit:
Panel Name: P1
Slot Index (Breaker Position): 1 (since the question refers to the first breaker position) Phase Label: A (default value for the first phase in a three-phase 120/208V Wye system) Therefore, the Circuit Number for a single-pole circuit in the first breaker slot will be:
✅ P1-1/A
This follows Revit's documented logic for circuit naming. According to the Autodesk Revit MEP User's Guide (Chapter 17 "Electrical Systems"):
"The circuit numbering format is controlled by the Electrical Settings > Circuit Naming template. The default scheme combines panel name, circuit number, and phase label, using the separators defined by the user." Furthermore, the Smithsonian Facilities Revit Template User's Guide confirms:
"In the default electrical configuration, circuit numbers use the format [Panel Name]-[Circuit Number]/[Phase], such as 'P1-1/A' for the first single-pole circuit on phase A." Hence, based on the provided configuration and standard electrical setup, the correct circuit number for the first single-pole breaker position in panelboard P1 is P1-1/A.
References:
Autodesk Revit MEP User's Guide - Chapter 17 "Electrical Systems," pp. 420-427 Smithsonian Facilities Revit Template User's Guide - Section 8.6 "Panel Schedules and Circuit Naming Schemes," p. 90 Autodesk Revit Electrical Design Essentials - "Circuit Naming Rules and Panel Configuration Standards"


NEW QUESTION # 27
An electrical designer needs to add spaces to a model displaying the architectural room name and number. What should the designer do before creating the spaces?

Answer: A

Explanation:
Before placing spaces in an MEP model that should reflect architectural room names and numbers, the linked architectural model must be set to Room Bounding. This ensures that Revit recognizes the architectural walls and room boundaries, allowing the spaces to reference and display room information correctly.
As the Revit MEP documentation explains:
"Turns on the Room Bounding parameter for the linked model. This step ensures that the Revit MEP project recognizes room-bounding elements in the Revit Architecture project."
"The spaces use the room boundaries defined by the Revit Architecture project." Additionally, the section Using Room Boundaries in a Linked Model details the procedure:
"In a plan view of the host project, select the linked model symbol → Click Modify | RVT Links tab ➤ Properties panel ➤ (Type Properties). In the Type Properties dialog, select Room Bounding." Once this setting is enabled, Revit MEP automatically detects the architectural rooms, enabling the designer to place spaces that inherit the architectural room name and number.


NEW QUESTION # 28
......
